The GX28-50 grapple has four massive claws on one side and three on the other. It
is a bypass design, so the material is always held tighly and securely. This grapple is
suited for use on very large excavators and log loaders. It can be mounted with either a
hanging rotator or a rigid rotator.
| GX28-50 |
Weight | Max Load |
Grip Force |
Max Pressure |
Rec. Exc. (ton) |
Rec. Rotator |
Rec. Flow |
|---|---|---|---|---|---|---|---|
| 1089 | 8800 |
12,814 |
5076 psi |
15-22 |
GV12S | 16 |

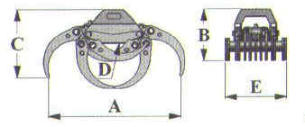

| Position | A | B |
C |
D |
E |
|---|---|---|---|---|---|
| Measurement | 58 ½" | 22 ¾" | 33" | 3 ¾" | 30" |
GX28-50 GRAPPLE
