The RMR16 is a continuous rotation rotator where the oil to open and close the grapple is run through the rotator to the outlets on the axle.  The rotator has a flat mounting surface for hookup of the ridged mounting plate.
Rotation: 360° Max Load: 83,776 lbs Max Working Pressure: 4641 psi Weight: 298 lbs Rotation Torque: 3097.76 ft.lbs. Port Size: 1/2”3/4”

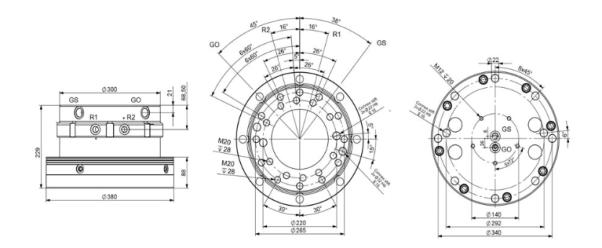

RMR16 Dimensions
RMR16 ROTATOR
