The TG28UGS-11 grapple has six claws on one side and five on the other. It is a
bypass design, so the material is always held tighly and securely. This grapple is suited
for use on large excavators and log loaders. It can be mounted with either a hanging
rotator or a rigid rotator.
| TG28 UGS |
Weight | Max Load |
Grip Force |
Max Pressure |
Rec. Exc. (ton) |
Rec. Rotator |
Rec. Flow |
|---|---|---|---|---|---|---|---|
| 1056 | 8000 |
12,814 |
5076 psi |
11-15 |
R6 | 16 |

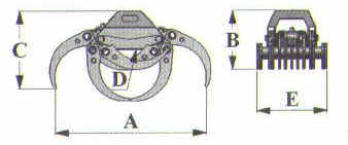

| Position | A | B |
C |
D |
E |
|---|---|---|---|---|---|
| Measurement | 58 ½" | 22 ¾" | 33" | 3" | 22 ¼" |
TG28UGS GRAPPLE
