The TG36UG-13 grapple has seven claws on one side and six on the other. It is a
bypass design, so the material is always held tightly and securely. This grapple is suited
for use on very large excavators and log loaders. It can be mounted with either a hanging
rotator or a rigid rotator.
| TG36 UG |
Weight | Max Load |
Grip Force |
Max Pressure |
Rec. Exc. (ton) |
Rec. Rotator |
Rec. Flow |
|---|---|---|---|---|---|---|---|
| 1496 | 8800 |
15,512 |
5076 psi |
15-22 |
GV12S | 24 |

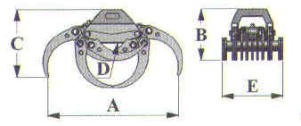

| Position | A | B |
C |
D |
E |
|---|---|---|---|---|---|
| Measurement | 70 ¾" | 25" | 33 ½" | 4" | 34 ½" |
TG36UG GRAPPLE
