| GR36 | Max. gripping width | Min. opening | Max. lifting capacity | Height. open | Height. closed | Width of wider claw | Working pressure | Jaw material | Weight | Recommended Rotator: |
|---|---|---|---|---|---|---|---|---|---|---|
| 36" | 1 ½" | 2200 lb. | 24 ½" | 16" | 11 ¼" | 2900 psi | Raex 640 | 110 lb. | R3 |

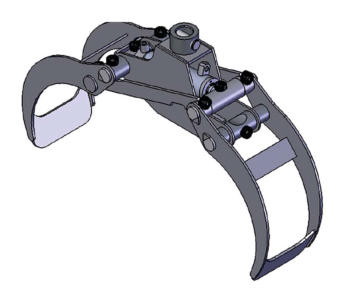

The GR-44 Grapple is a small grapple for farm tractor forwarders and 3-point hitch
knuckleboom loaders. The grapple is shown here with the R-3 rotator. This is also a
popular combination when small backhoes are converted to loaders.
Modern bypass grapple design.
All Valby grapples have a bronze bushing at every joint, and every
joint has a grease fitting.
Large, powerful cylinder.
Double connection rods provide good balance and less stress.
A belly plate protects the cylinder from underneath.
The Valby bypass grapples have excellent geometry. The form of
the claws enables a smooth roll in of the stems. The grapples also
close to a tight minimum opening.
GR44 GRAPPLE
