| GR50 | Max. gripping width | Min. opening | Max. lifting capacity | Height. open | Height. closed | Width of wider claw | Working pressure | Jaw material | Weight | Recommended Rotator: |
|---|---|---|---|---|---|---|---|---|---|---|
| 50 3/4" | 3 ½" | 3080 lb. | 26 ¼" | 20 ½" | 12 ¼" | 2900 psi | Hardox | 216 lbs | R45 |

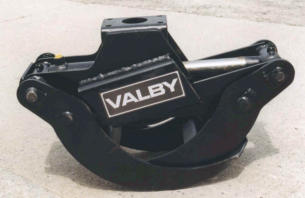

The GR-50 grapple is for large farm tractor forwarders, backhoes, skid steer loaders and
mini excavators.
Modern bypass grapple design.
All Valby grapples have a bronze bushing at every joint, and every joint has a grease fitting.
Large, powerful cylinder.
Double connection rods provide good balance and less stress.
A belly plate protects the cylinder from underneath.
The Valby bypass grapples have excellent geometry. The form of the claws enables a smooth roll in
of the stems. The grapples also close to a tight minimum opening.
GR50 GRAPPLE
