GR60 |
Max. gripping width |
Min. opening |
Max. lifting capacity |
Height. open |
Height. closed |
Width of wider claw |
Working pressure |
Jaw material |
Weight |
Recommended Rotator: |
|
60 ½" |
3 ½" |
7700 lb. |
31" |
21" |
15 " |
3625 psi |
Hardox |
397 lb. |
R6 |

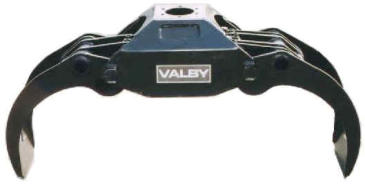

The Valby GR 60 closes down to 3 ½ inches, and is a good choice for
large truck cranes.
Modern bypass grapple design.
All Valby grapples have a bronze bushing at every joint, and every joint has a grease fitting.
Large, powerful cylinder.
Double connection rods provide good balance and less stress.
A belly plate protects the cylinder from underneath.
The Valby bypass grapples have excellent geometry. The form of the claws enables a smooth roll in
of the stems. The grapples also close to a tight minimum opening.
GR60 GRAPPLE
