| GR60HD | Max. gripping width | Min. opening | Max. lifting capacity | Height. open | Height. closed | Width of wider claw | Working pressure | Jaw material | Weight | Recommended Rotator: |
|---|---|---|---|---|---|---|---|---|---|---|
| 60 ½" | 3½" | 11,000 lb. | 31" | 21 ¼" | 20" | 3625 psi | Hardox | 563 lb. | GV 12 |
For large truck loaders and medium size excavators.
Modern bypass grapple design.
All Valby grapples have a bronze bushing at every joint, and every joint has a grease fitting.
Large, powerful cylinder.
Double connection rods provide good balance and less stress.
A belly plate protects the cylinder from underneath.
The Valby bypass grapples have excellent geometry. The form of the claws enables a smooth roll in
of the stems. The grapples also close to a tight minimum opening.

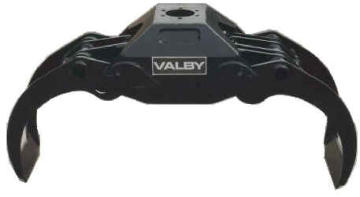

GR60HD GRAPPLE
