| GR75HD | Max. gripping width | Min. opening | Max. lifting capacity | Height. open | Height. closed | Width of wider claw | Working pressure | Jaw material | Weight | Recommended Rotator: |
|---|---|---|---|---|---|---|---|---|---|---|
| 74 ¾" | 4" | 15,400 lbs. | 38" | 26 ½" | 21" | 3625 psi | Hardox | 807 lbs. | GV 12S |

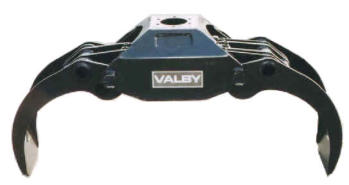

This is a rugged grapple that is made of Hardox steel. The grapple has a 1" thick flat
mounting plate, so that it provides a strong base for rotator hook up. Every joint
has a grease fitting and a bronze bearing. The grapple has two connection rods,
which provide balance of the jaw movements.
Modern bypass grapple design.
All Valby grapples have a bronze bushing at every joint, and every
joint has a grease fitting.
Large, powerful cylinder.
Double connection rods provide good balance and less stress.
A belly plate protects the cylinder from underneath.
The Valby bypass grapples have excellent geometry. The form of the
claws enables a smooth roll in of the stems. The grapples also close to a
tight minimum opening.
This model may need to be special ordered.
GR75HD GRAPPLE
