Rotation:
Unlimited in either direction
Max Load:
26,455 lb.
Max Working Pressure:
3626 psi
Torque:
1770 ft. lbs./ 2900 psi
Weight:
143 lbs.
Has pin to fit grapple hanger with hole of:
1 3/8"/1 3/4"
Has same hook up dimensions as:
GV12 , MTR104
Oil hoses to grapple from:
Bottom or Sides of rotator.
Inside bracket diameter:
3.189" (136 mm)
On the GV 12, the upper bracket has holes for 35mm or 1 3/8".
The rotator comes with JIC fittings for the incoming oil. The oil hoses between the grapple and the
rotator can be hooked up either from the bottom of the rotator, or from the sides of the rotator.
| Type | A) Width of block on top of the rotator |
B) Pinhole diameter through rotator |
C) Axle diameter |
E) |
Thread |
|---|---|---|---|---|---|
| GV12 | 3.189” (81 mm) | 1.378” (35 mm) |
6.8” (173 mm) |
11.968” (304 mm) | JIC ¾” 16 |

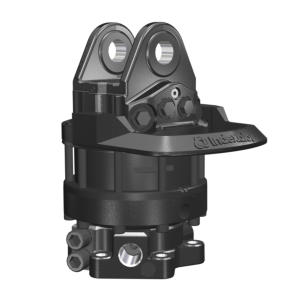

GV12 ROTATOR
