The R45 is a continuous rotation rotator where the oil to open and close the
grapple is run through the rotator to the outlets on the axle. The rotator has a
grease fitting for hookup pin of the hanger. The hose guard protects the hoses
from damage.
Rotation:
Unlimited in either direction
Max Load:
9921 lb.
Max Working Pressure:
3626 psi
Torque:
811 ft. lb./2320 psi
Weight:
53 lb.
Has pin to fit grapple hanger with hole of:
1"
The hook up dimensions of the R45 allow it to replace GV4 and the FR10 rotators.
The rotators come with JIC fittings. Hook up is easy, as symbols on the rotator describe the
functions of each outlet. From left to right: opening of jaws, rotating functions, and closing of the
jaws.

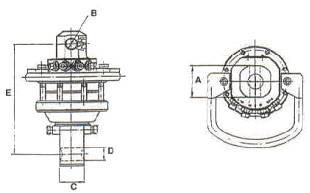

| Type | A) Width of block on top of the rotator |
B) Pinhole diameter through rotator |
C) Axle diameter |
D) Pinhole diameter to fasten grapple to rotator |
E) |
Thread |
|---|---|---|---|---|---|---|
| R45 | 2.874” (73 mm) | 0.984” (25 mm) |
2.322” (59 mm) |
1.181” (30 mm) | 9.99” (254 mm) |
JIC ¾” 16 |
R45 ROTATOR
