Rotation:
Unlimited in either direction
Max Load:
12,100 lb.
Max Working Pressure:
3600 psi
Torque:
1180 ft. lb/2900 psi
Weight:
66 lb.
Has pin to fit grapple hanger with hole of:
1 3/8"

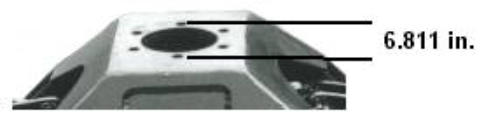

The distance across the bolt holes is 6 13/16”. The bolt diameter is 5/8”, or 16mm.

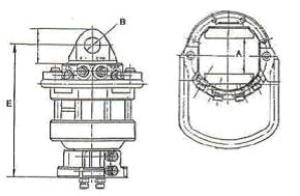

| Type | A) Width of block on top of the rotator |
B) Pinhole diameter through rotator |
C) Axle diameter |
D) Pinhole diameter to fasten grapple to rotator |
E) |
Thread |
|---|---|---|---|---|---|---|
| R55 | 2.874” (73 mm) | 1 1/8"” (30 mm) |
N/A |
N/A | 12 ½" |
JIC ¾” 16 |
Rotators with Flanges
R55 ROTATOR
