The RMR3 is a continuous rotation rotator where the oil to open and close the grapple is run through the rotator to the outlets on the axle.  The rotator has a flat mounting surface for hookup of the ridged mounting plate.
Rotation: 360° Max Load: 11,023 lbs Max Working Pressure: 4641 psi Weight: 66 lbs Rotation Torque: 958.83 ft.lbs. Port Size: M18x1.5

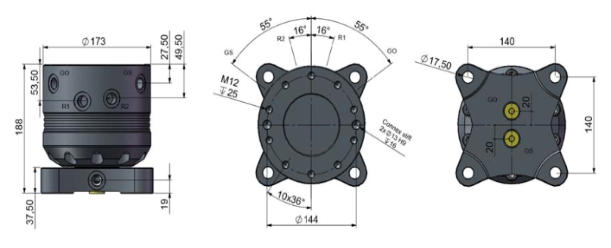

RMR3 Dimensions
