The RMR6 is a continuous rotation rotator where the oil to open and close the grapple is run through the rotator to the outlets on the axle.  The rotator has a flat mounting surface for hookup of the ridged mounting plate.
Rotation: 360° Max Load: 32,000 lbs Max Working Pressure: 4641 psi Weight: 134 lbs Rotation Torque: 2065.17 ft.lbs. Port Size: G1/2

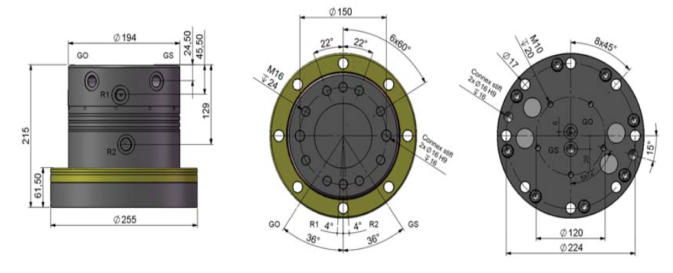

RMR6 Dimensions
