The TG12 UG/7 grapple has four jaws on one side and three on the other side. It is
of the modern bypass design where the material is held in place by force from from
several directions. The jaws are made of high grade Hardox steel. This size grapple is
suited for use in mini excavators, skid steer loaders and small knucklebooms. The Valby
grapples can be used without a rotator, with a hanging rotator or with a rigid rotator.
| TG12 UG |
Weight | Max Load |
Grip Force |
Max Pressure |
Rec. Exc. (ton) |
Rec. Rotator |
Rec. Flow |
|---|---|---|---|---|---|---|---|
| 152 | 1320 |
3147 |
3626 psi |
1-2 |
R3 | 8 |

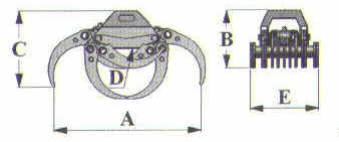

| Position | A | B |
C |
D |
E |
|---|---|---|---|---|---|
| Measurement | 27 ½" | 13 ¼" | 23 ½ " | 1 ¼" | 10 ½" |
TG12UG GRAPPLE
