| TG20 DG | Weight | Max Load |
Grip Force |
Max Pressure |
Rec. Exc. (ton) |
Rec. Rotator |
Rec. Flow |
|---|---|---|---|---|---|---|---|
| 1089 | 5500 |
7419 | 5076 psi | 6-11 | RMR12 | 16 |
| Position | A | B |
C |
E |
|---|---|---|---|---|
| Measurement | 62" | 35" | 28 ½" | 21" |

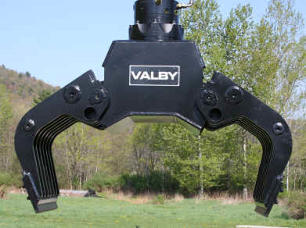

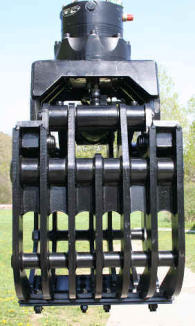

The Valby TG20 DG is a pinch type demolition grab with replaceable wear plates on the
jaws. The jaws are made of high grade Hardox steel. Every joint has a bronze bearing
and a grease fitting. The mounting plate is built to take the strain of operating in
horizontal positions with a rigid rotator. Two connection rods provide a balanced load
to the jaws.
The grapple has a flat mounting plate, so it can be used with
either hanging or rigid rotators.
VALBY® Grapples have a bronze bushing and a grease
fitting at every joint.
VALBY® Grapples have large, powerful cylinders with
heavy pistons.
A belly plate protects the cylinder from underneath.
VALBY® Grapples have easily accessible grease fittings.
TG20-DG GRAPPLE
