The TG22UG-9 grapple has four claws on one side and five on the other side. It is a
bypass design, so the material is always held tighly and securely. This grapple is suited
for use on mini excavators and small knucklebooms. It can be mounted with either a
hanging rotator or a rigid rotator.
| TG22 UG |
Weight | Max Load |
Grip Force |
Max Pressure |
Rec. Exc. (ton) |
Rec. Rotator |
Rec. Flow |
|---|---|---|---|---|---|---|---|
| 656 | 4400 |
7419 |
5076 psi |
8-11 |
R55 | 16 |

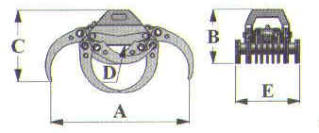

| Position | A | B |
C |
D |
E |
|---|---|---|---|---|---|
| Measurement | 44 ¾" | 22 ¾" | 33" | 3" | 22 ¼" |
TG22UG GRAPPLE
