| TG35 DG | Weight | Max Load |
Grip Force |
Max Pressure |
Rec. Exc. (ton) |
Rec. Rotator |
Rec. Flow |
|---|---|---|---|---|---|---|---|
| 3729 | 15,400 |
15,512 | 5076 psi | 24-38 | RMR200 | 24 |
The grapple has a flat mounting plate, so it can be used with
either hanging or rigid rotators.
VALBY® Grapples have a bronze bushing and a grease
fitting at every joint.
VALBY® Grapples have large, powerful cylinders with
heavy pistons.
A belly plate protects the cylinder from underneath.
VALBY® Grapples have easily accessible grease fittings.
| Position | A | B |
C |
E |
|---|---|---|---|---|
| Measurement | 92" | 51" | 41 ½" | 39 ¼" |

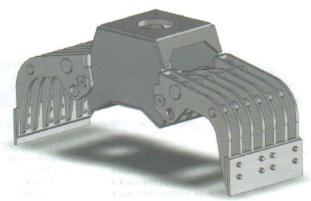

The Valby TG35 DG is a pinch type demolition grab with replaceable wear plates on the
jaws. The jaws are made of high grade Hardox steel. Every joint has a bronze bearing
and a grease fitting. The mounting plate is built to take the strain of operating in
horizontal positions with a rigid rotator. Two connection rods provide a balanced load
to the jaws.
TG35-DG GRAPPLE
